Please provide your 2D or 3D drawings, material requirements, quantity, accuracy tolerances, surface roughness requirements and any critical inspection specifications. The more complete the technical information, the more accurately we can evaluate your project and prepare a quotation.

Yes. METRIXNANO focuses on custom High-Precision manufacturing based on customer drawings and technical requirements. We support customized dimensions, geometries, materials and manufacturing requirements for precision mold&components, and other engineered parts.

Yes. We understand that drawings, designs and project information may contain confidential technical data. NDA requirements can be discussed before detailed project information is shared.

Achievable tolerance depends on the material, component geometry, dimensions, and production quantity.

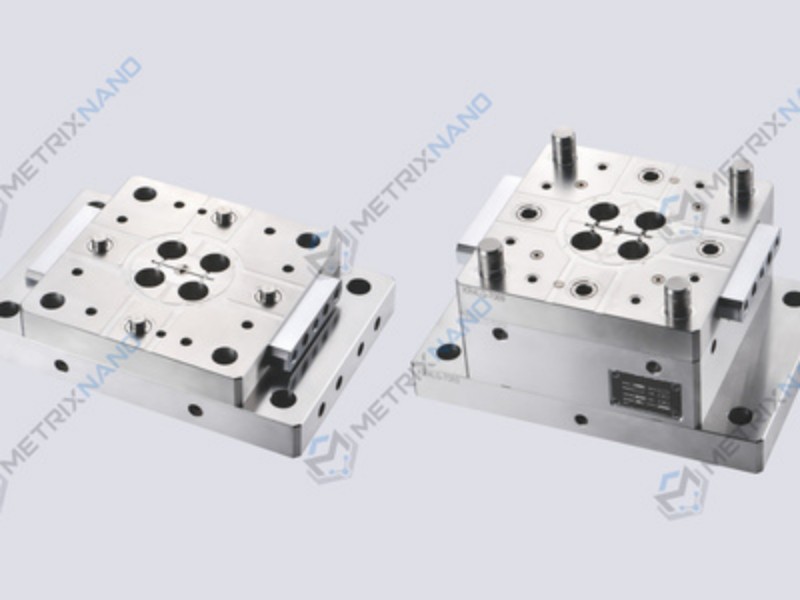

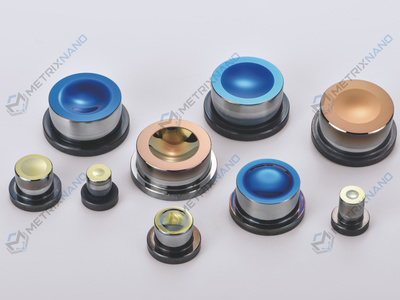

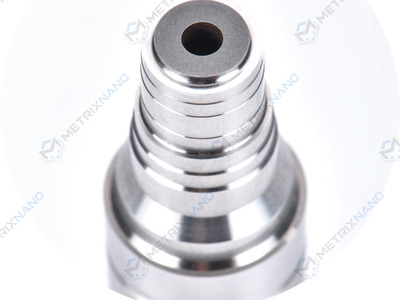

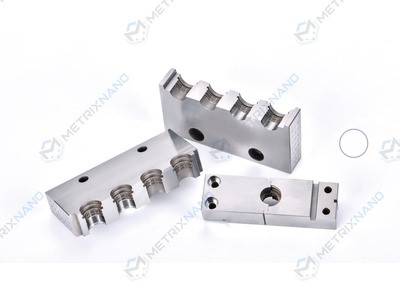

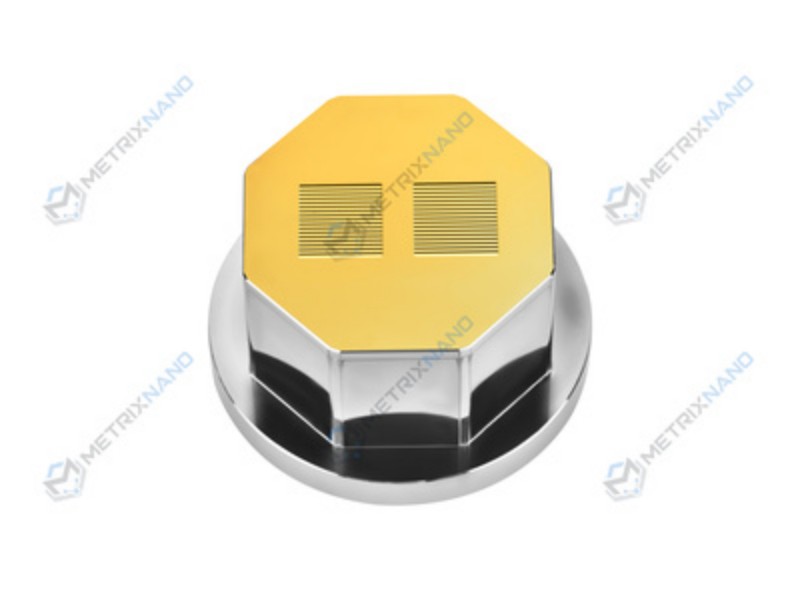

Taking a 500mm × 500mm mold base as an example, the flatness can reach 0.0005mm, the surface finish can reach Ra < 20nm, and the roundness, cylindricity and perpendicularity can all reach 0.0003mm, with a runner surface finish of Ra < 60nm. For cavity mold inserts, the aspheric profile accuracy can reach 0.1μm peak-to-valley (PV). Another example, positioning in molds the cylindricity accuracy we achieve after fitting can reach 0.3 micrometers, which contributes to a longer mold opening and closing lifespan, as well as the batch-to-batch stability of injection molded products.

Yes. Prototype manufacturing can be supported for design verification, assembly evaluation and initial quality confirmation. After the prototype and specifications are approved, the project can proceed to the agreed production quantity.

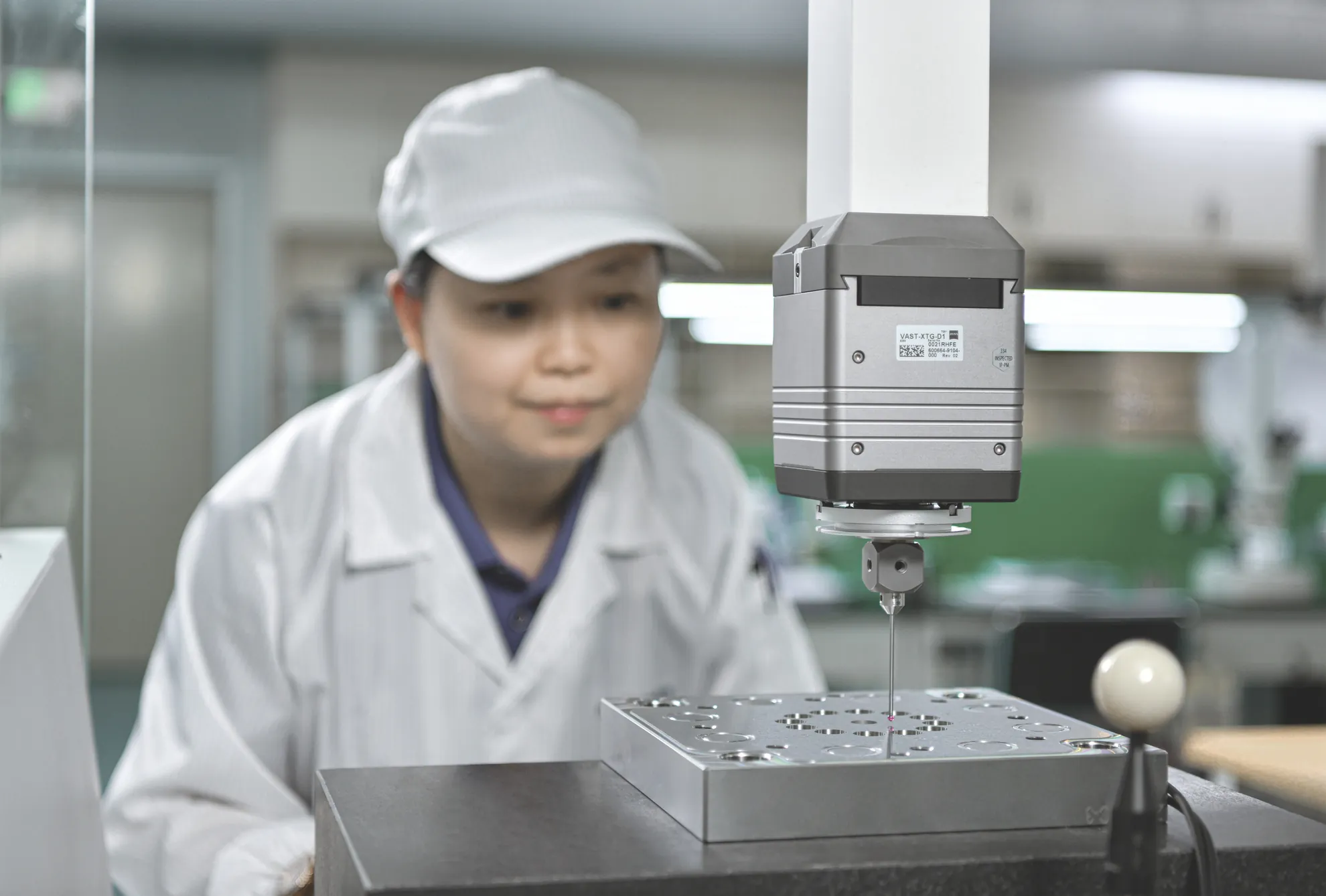

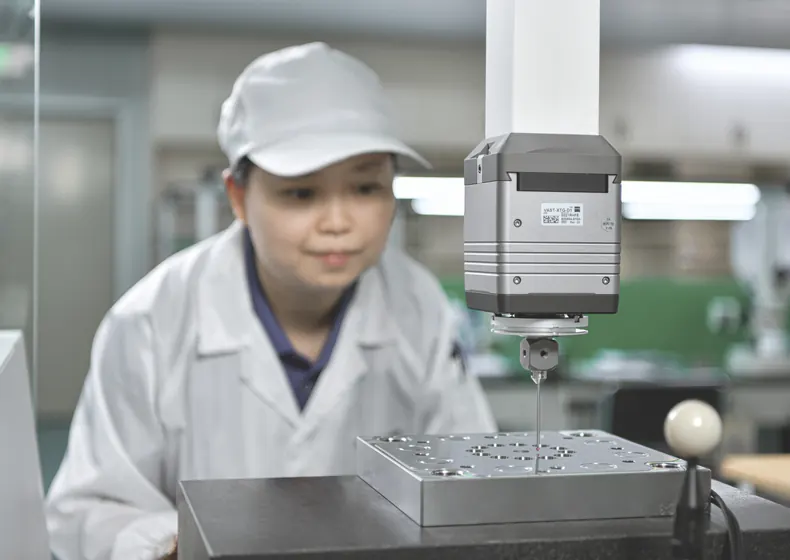

Inspection methods are selected according to the component and drawing requirements. METRIXNANO has dimensional, geometric and surface inspection capabilities, with equipment including CMM, interferometry, microscopy and other precision measurement systems. Inspection requirements and reports can be defined according to the specific project.
